Mercedes EQV 300 Charging Cable
Quick recommendation

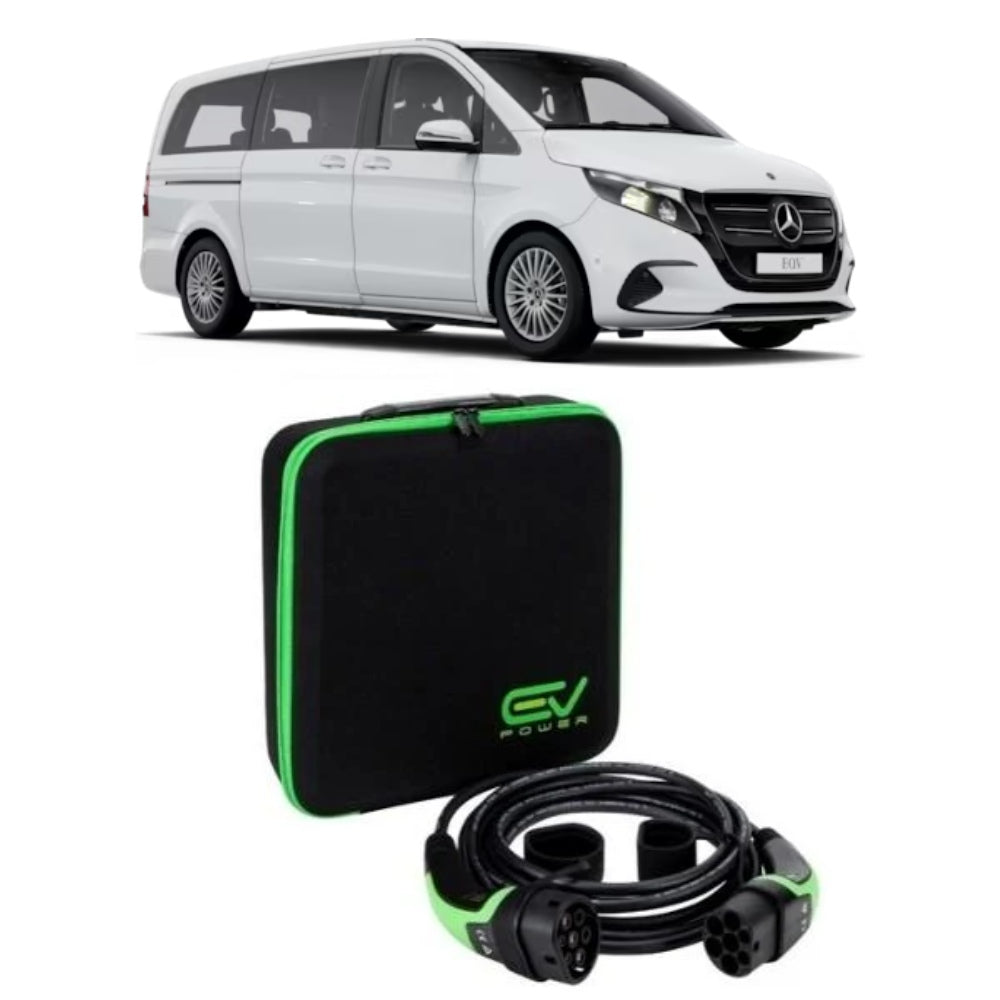

For home charging an EQV 300, buy the 32A Type 2 to Type 2 cable. It carries 7.4 kW, which is everything a British domestic charge point can give, and this is a van sized battery that needs all of it.
Mercedes sold the EQV 300 here between 2020 and 2024, in Long and Extra-Long wheelbase, and it was the only EQV offered in the UK. Under the floor is a 100 kWh gross pack with 90 kWh usable. That is a great deal of energy to move through a cable, so the choice matters more here than on a small hatchback.
On a 7.4 kW home supply with the 32A cable, expect around thirteen and three quarter hours from empty. Step down to a 16A cable at 3.7 kW and the same charge runs to roughly twenty seven and a half hours, which is more than a full day. The 16A cable is not a sensible saving on this vehicle.
The EQV 300 will accept 11 kW on AC, but that is a three phase number and it is worth being clear about what it means. Homes in Britain are supplied with a single phase, so no domestic wall box can exceed 7.4 kW whichever cable you own. The 11 kW figure appears only at a three phase charge point, and reaching it needs the three phase cable as well as the three phase supply. Buy that version if your depot, workplace or yard has a three phase AC unit, since it brings a full charge down to about nine and a quarter hours. If you charge on a driveway, it will behave exactly like the 32A single phase cable and cost you more.
Whatever you use, the speed is decided by the lowest of three limits: the car, the supply and the cable.

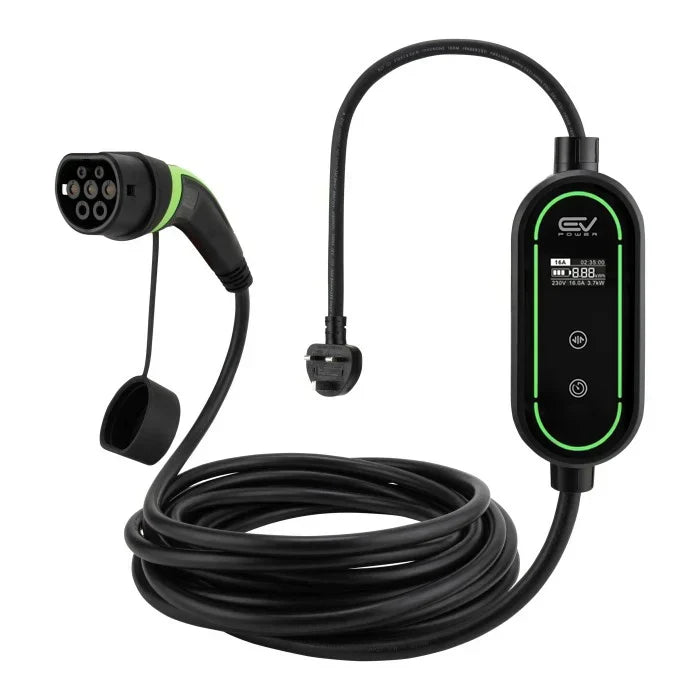

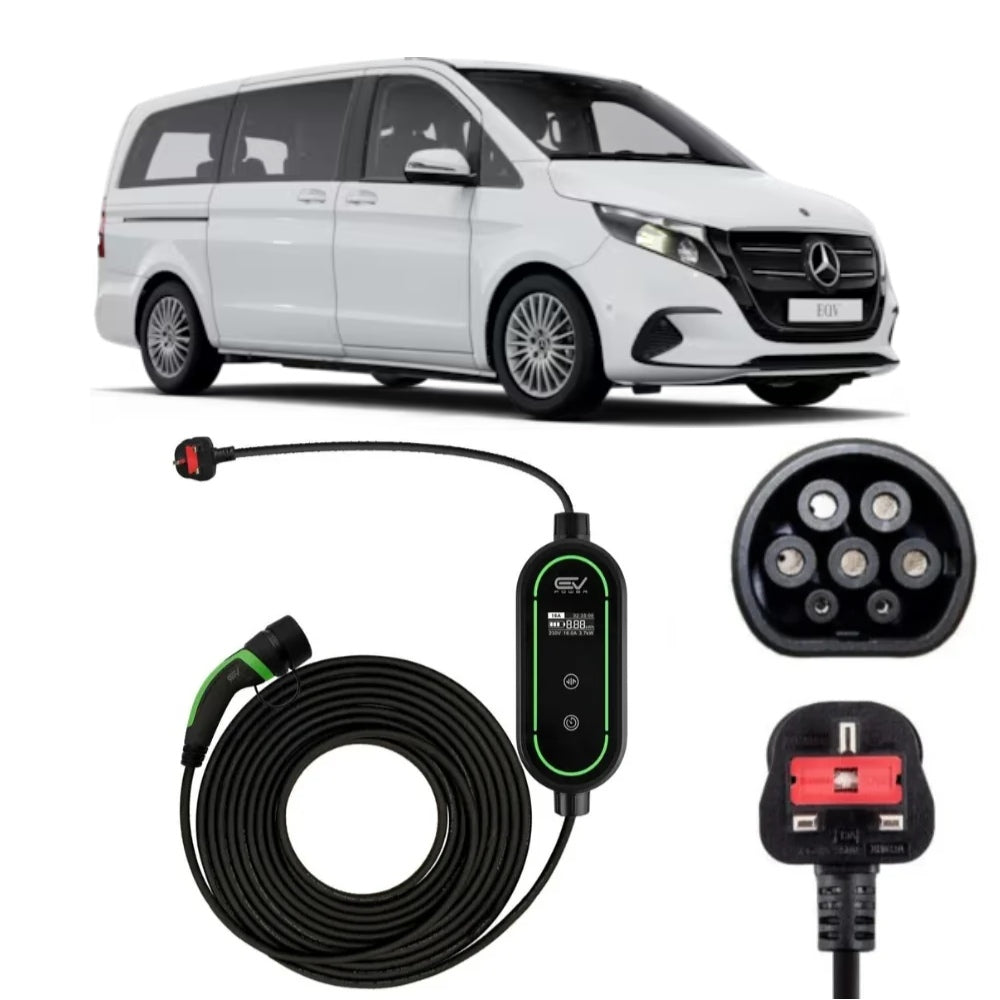

A Type 2 to 3 Pin lead is not realistic as a main method on a 90 kWh battery, since 2.3 kW would take the best part of two days. Keep one for occasional top ups away from home.
The petrol and diesel Vito and V-Class have no charging port in any year, and the eVito is the panel van version of this vehicle.

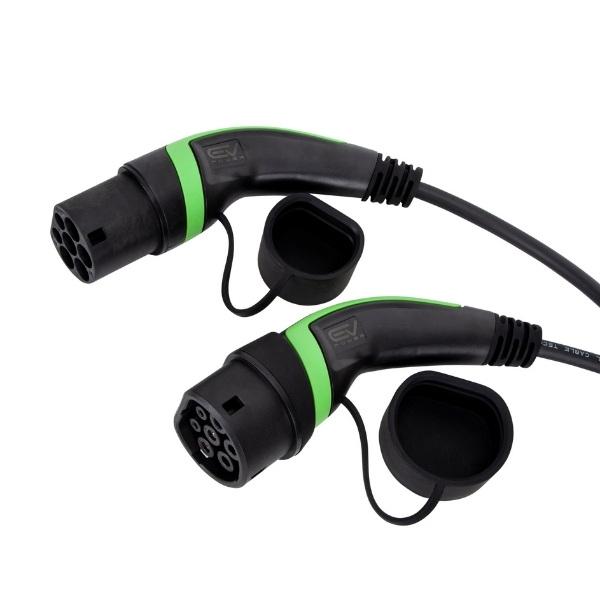

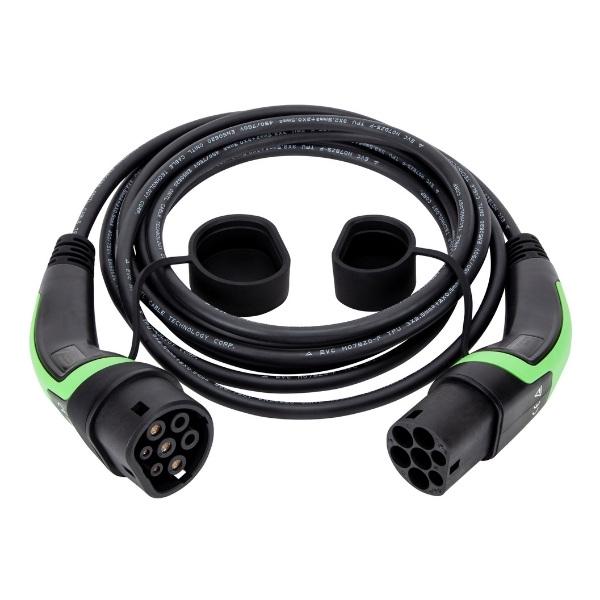

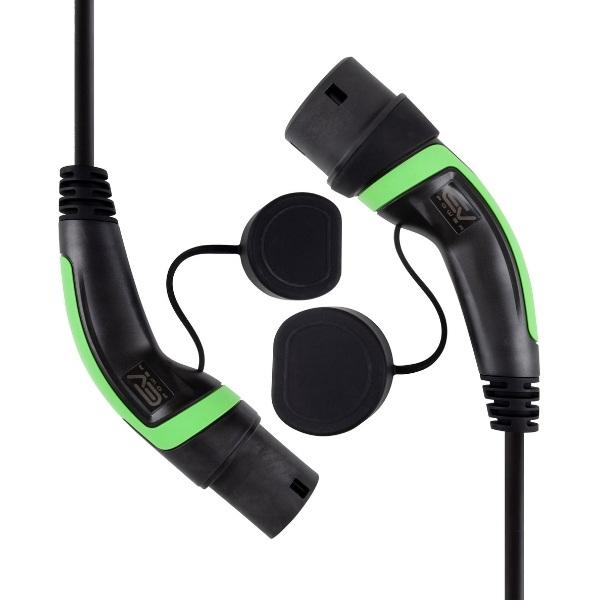

Type 2 to Type 2 cables are IP55 rated, Type 2 to 3 Pin cables are IP67, both come in 5m and 10m lengths, and every order includes a 2 year manufacturer's warranty and same-day dispatch on working-day orders placed before 2pm.
Mercedes EQV 300 Charging Times
EQV 300 Long and Extra-Long, 2020 to 2024, 90 kWh usable
| Cable Type | Max Charge Rate | Empty to Full | Verdict |
|---|---|---|---|
| Type 2 to 3 Pin, 5m or 10m | 2.3 kW | 44h15m | Occasional top ups only |
| Type 2 to Type 2 16A, 5m or 10m | 3.7 kW | 27h30m | Over a day, avoid |
| Type 2 to Type 2 32A, 5m or 10m | 7.4 kW at home | 13h45m | Best fit for home |
| Type 2 to Type 2 32A three phase, 5m or 10m | 11 kW, three phase supply only | 9h15m | Only with three phase access |
On a single phase home supply the three phase cable delivers the same 7.4 kW as the standard 32A cable, and therefore the same 13h45m.
Mercedes EQV 300 Charging Cable FAQs
Which cable does a Mercedes EQV 300 need?
A 32A Type 2 to Type 2 cable for home use. The EQV 300 has 90 kWh usable and a Type 2 inlet, and 32A carries the full 7.4 kW a British house can supply, giving a complete charge in about 13h45m. The 16A cable halves that rate and is not worth considering on a pack this size.
Is the 22 kW three phase cable worth it?
Only if you have three phase access. The EQV 300 tops out at 11 kW on AC, and at a three phase charge point that cuts a full charge to roughly 9h15m instead of 13h45m. Plugged into an ordinary single phase home wall box, the same cable delivers 7.4 kW, exactly like the cheaper 32A version.
How long does an EQV 300 take to charge?
From empty at home on 7.4 kW, around 13h45m for the 90 kWh usable battery. On a 16A cable at 3.7 kW it climbs to about 27h30m. With a three phase supply and cable the car draws 11 kW and finishes in roughly 9h15m. A three pin lead would take nearly two days.
Why can I not get 11 kW at home?
Because British houses have a single phase electricity supply and 11 kW requires three phases. A home charge point is therefore capped at 7.4 kW no matter what the EQV 300 is capable of or which cable is fitted. Three phase supplies are normally found at commercial premises rather than domestic addresses.
Does the Mercedes V-Class plug in?
No. Petrol and diesel Vito and V-Class models have no charging port in any model year, so no cable will connect to them. The EQV 300 is the electric version of that vehicle for passenger use, and the eVito is the equivalent panel van. Both of those take a Type 2 cable.
Is 5m long enough for a Mercedes EQV?
Often not. The EQV is a long wheelbase vehicle and many owners park it nose out or across a yard rather than tight against a wall box. Ten metres removes the risk of falling short, particularly on the Extra-Long version. The cable length has no effect on the 7.4 kW charge rate.
