MG ZS Charging Cable

Quick recommendation

An MG ZS EV charging cable is one of the easier decisions in this catalogue, because the car never draws more than about 7 kW on AC and never has. MG changed the battery three times between 2019 and 2023, from 44.5 kWh to 51.1 kWh to the 72.6 kWh Long Range, and left the onboard charger roughly where it started each time. Check the badge before buying anything, though. The MG ZS sold from 2024 is a petrol hybrid with no charging socket at all, and only the ZS EV built between 2019 and 2023 takes a cable.

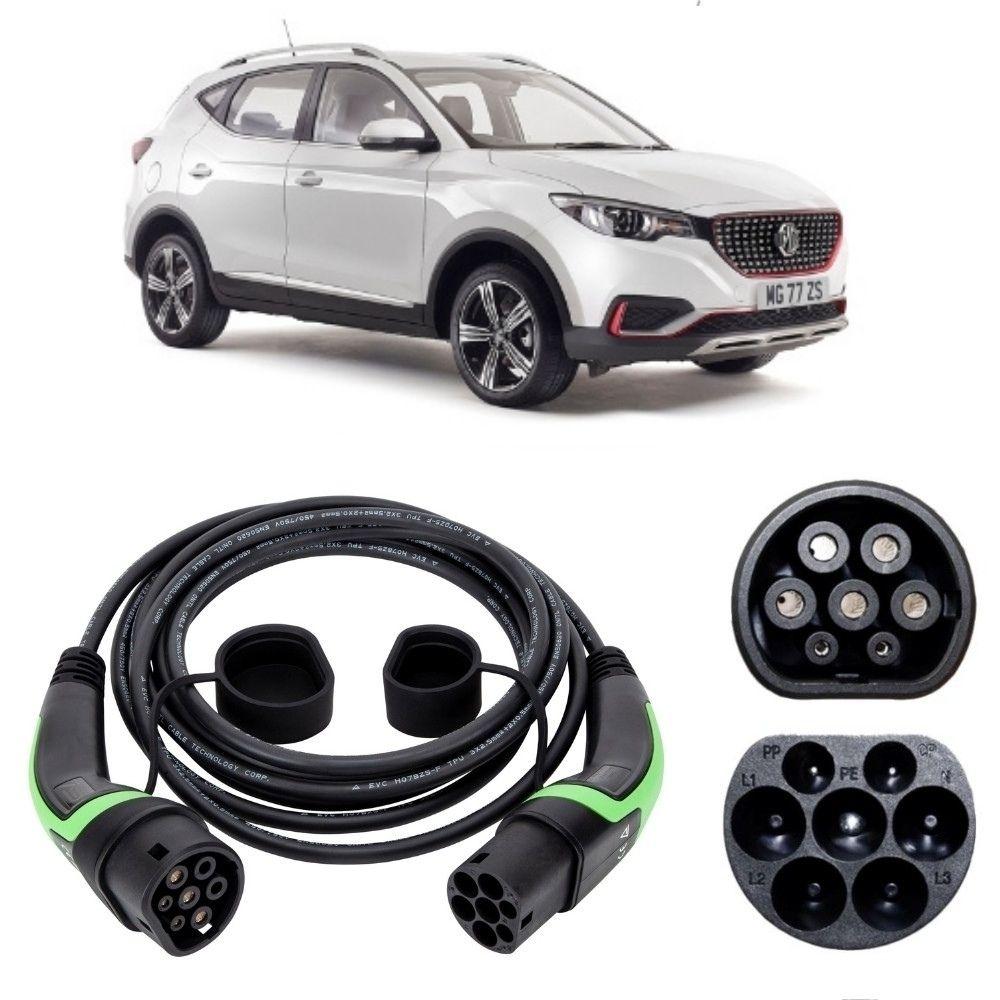

Every MG ZS EV uses a Type 2 to Type 2 Charging Cable. The inlet hides behind the MG badge in the centre of the grille, so the socket sits at the very nose of the car rather than on a rear wing like most rivals.

Buy the 32A single phase version. A British house is fed by one phase and one phase tops out at 7.4 kW, which is already more than the ZS EV will accept. Three phase power is a commercial and industrial supply, so the 22 kW cable has nothing extra to offer this car on a driveway, and nothing extra to offer it at a workplace either, because the ceiling is inside the MG rather than in the wiring.

The 16A cable saves a little and costs a lot of time. On the 72.6 kWh Long Range it stretches a full charge from 11 hours to 20 hours 45 minutes, so the car stops finishing inside one night. Recovery falls from about 28 miles an hour to 15, meaning a seven hour cheap rate window puts back roughly 196 miles on the better cable and about 105 on the cheaper one. The saving is thirteen pounds on a five metre lead.

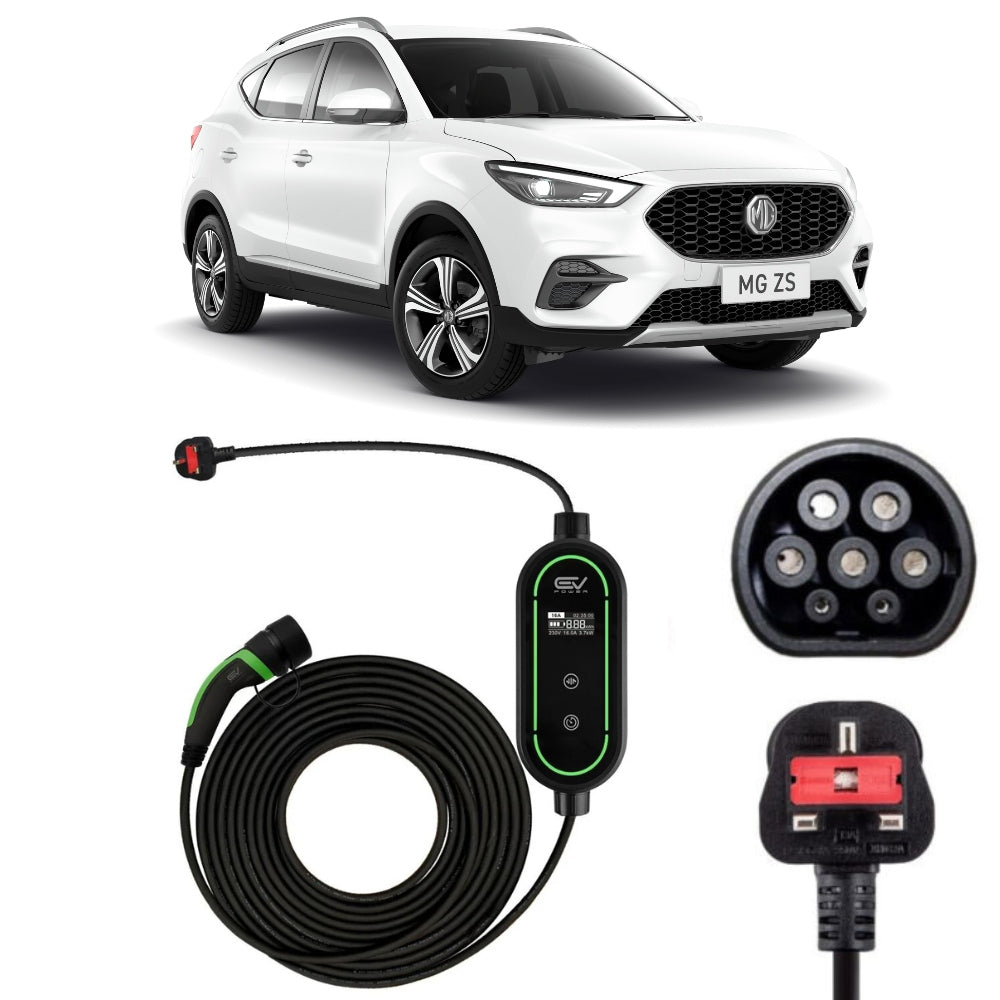

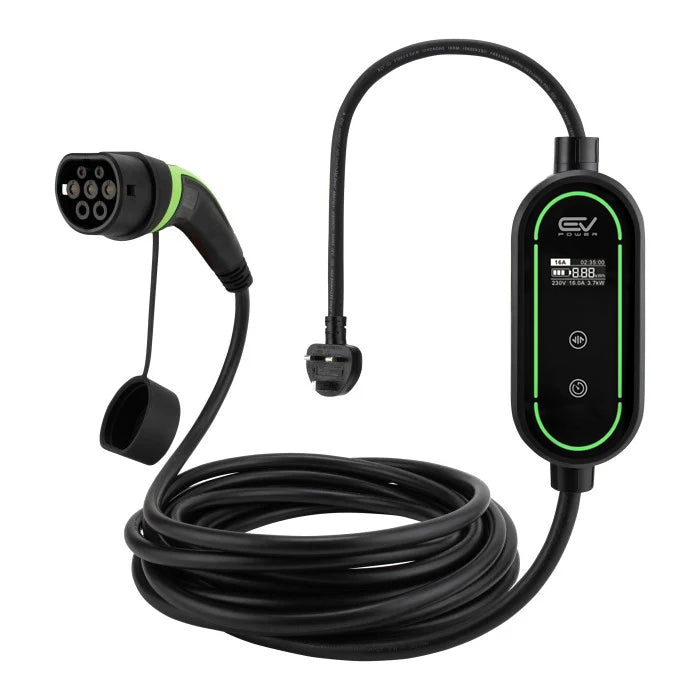

Keep a Type 2 to 3-Pin Charging Cable in the boot anyway. It pulls 2.3 kW from an ordinary 13 amp socket, about 9 miles an hour on the Long Range car, so a night parked at a relative's house is worth roughly 90 miles. Our guide covers what a household socket really gives an electric car.

If you are cross shopping inside the range, the MG4 charging cable page covers the hatchback and the MG HS charging cable page covers the plug-in SUV, both of which use different onboard chargers to this one. Every MG lead we stock is listed in the MG EV charging cables collection, and our guide to IP ratings explains what the sealing figures below actually protect against.

Every cable we ship is built to IEC 62196 Type 2, CE certified, and rated from -30C to +50C, or +60C for the 3-pin. The Type 2 to Type 2 leads carry an IP55 rating and the Type 2 to 3-Pin lead is sealed to IP67. All of it is covered by a 2 year manufacturer's warranty, with same-day dispatch on working-day orders placed before 2pm.

MG ZS EV Charging Times by Battery

Long Range, 72.6 kWh pack, 68.3 kWh usable, up to 273 miles WLTP

Maximum onboard AC charging speed: about 7 kW, single phase

51.1 kWh pack, 49 kWh usable, up to 198 miles WLTP

Maximum onboard AC charging speed: 6.6 kW, single phase

44.5 kWh pack, 42.5 kWh usable, up to 163 miles WLTP

Maximum onboard AC charging speed: 6.6 kW, single phase

Every figure above falls away in cold weather and on a fast motorway run.

MG ZS EV Charging Cable FAQs

What charging cable does an MG ZS EV need?

Buy the 32A single phase Type 2 to Type 2 Charging Cable. The MG ZS EV never draws more than about 7 kW on AC, so that lead saturates the onboard charger on every battery MG fitted, from the 2019 44.5 kWh car through to the 72.6 kWh Long Range.

Would a 22kW cable speed up an MG ZS EV?

No. An MG ZS EV cannot accept 22 kW from any source, so the three phase cable changes nothing on a driveway and nothing at a workplace with three genuine phases either. The ceiling sits in the car's own onboard charger rather than in the supply feeding it.

Do the three MG ZS EV batteries charge at different speeds?

They finish at different times because they hold different amounts, not because they fill at different rates. On a 32A cable the 44.5 kWh MG ZS EV takes about 7 hours 15 minutes from empty, the 51.1 kWh car about 8 hours 30 minutes and the 72.6 kWh Long Range about 11 hours.

How long a cable does an MG ZS EV need?

5m works if you park nose in to the wallbox, because the MG ZS EV takes its charge through the front grille rather than through a wing. Reverse onto the drive, or park with the nose pointing away from the unit, and the lead has to travel the whole 4.3 metre length of the car, which is where 10m earns its money.

Does an MG ZS EV need its own cable for public charging?

Yes, on AC. Most street and car park posts in Britain are untethered Type 2, meaning the socket is bare and the driver supplies the lead. A 5m cable reaches on the majority of bays and a 10m one handles those where the post ends up behind the parking space.

How much range does an MG ZS EV gain in one cheap rate window?

About 196 miles across a seven hour window on a 32A cable with the 72.6 kWh Long Range battery, and around 189 miles on the 51.1 kWh car. Swap to the 16A cable and both drop to roughly 105 miles, which is where the cheaper lead stops paying for itself.
